Product Description

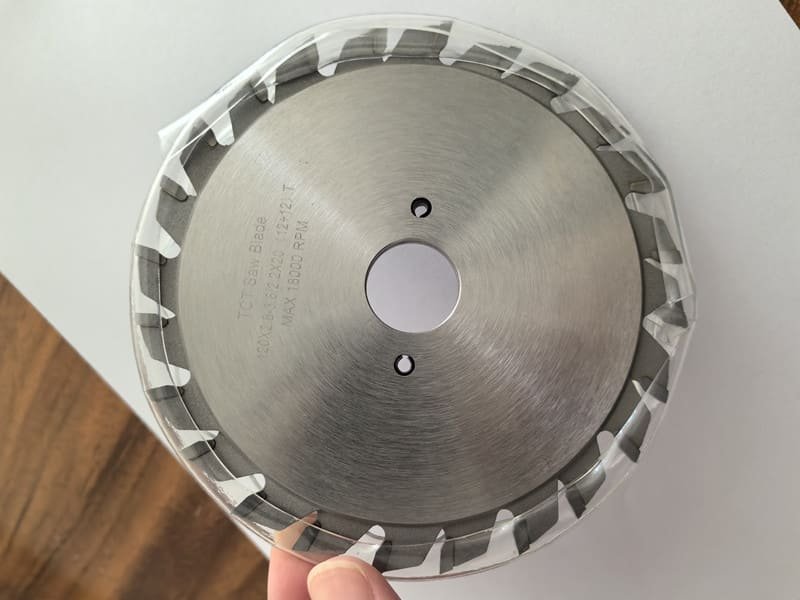

This is a 2-piece adjustable conical scoring saw blade set, specially designed as the under-cutter for sliding table panel saws.
✅ Specification

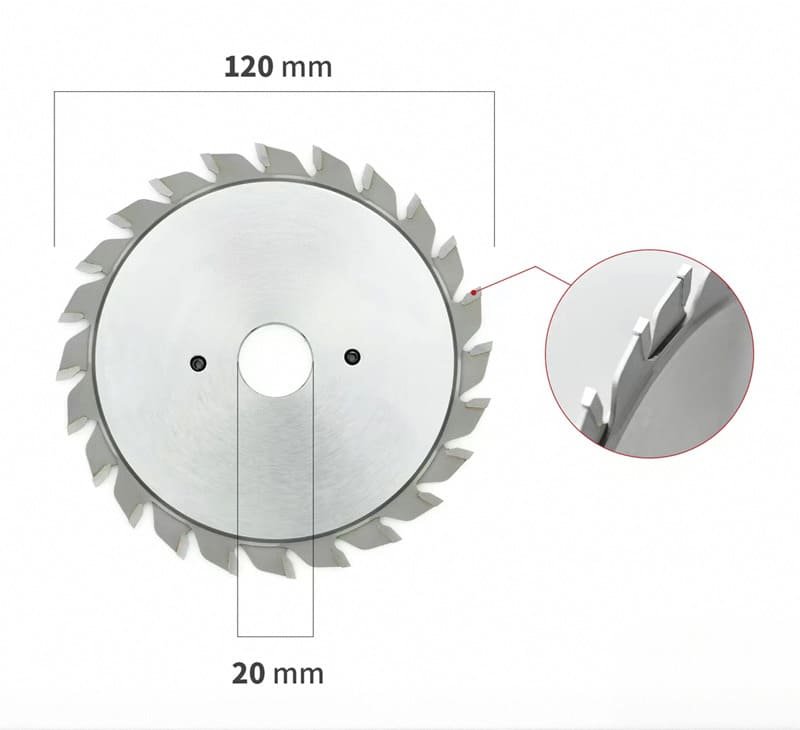

- Diameter: Ø120 mm
- Adjustable kerf width: 2.8 mm ~ 3.6 mm (adjust by adding or removing spacers between two blades)
- Bore: 20 mm
- Teeth: Z=12+12 (Total 24T)
- Tip Material: Tungsten Carbide
- Max RPM: 18000
✅ Core Function The scoring blade works before the main saw. It pre-scores the bottom veneer of panels to eliminate bottom chipping, tear-out and splintering when cutting melamine faced board, laminate, MDF, particle board, plywood and HPL fireproof board. It cannot cut through the board alone; it is a matching under-scoring cutter for panel saw.
✅ Features & Advantages

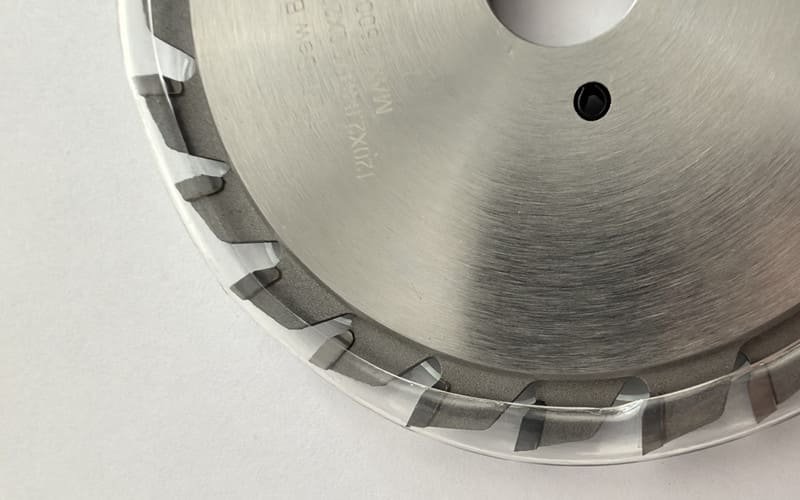

- Precision ground carbide tips for clean, smooth scoring
- Balanced steel body, stable running at high speed up to 18000 RPM
- Adjustable cutting width to match different main saw kerf
- Great for cabinet, furniture and joinery workshops
- Industrial grade woodworking tool for zero-chip panel cutting
✅ Application Perfect for sliding table saw / panel sizing saw, widely used for melamine board, laminated board, MDF, particleboard, veneered plywood, chipboard.

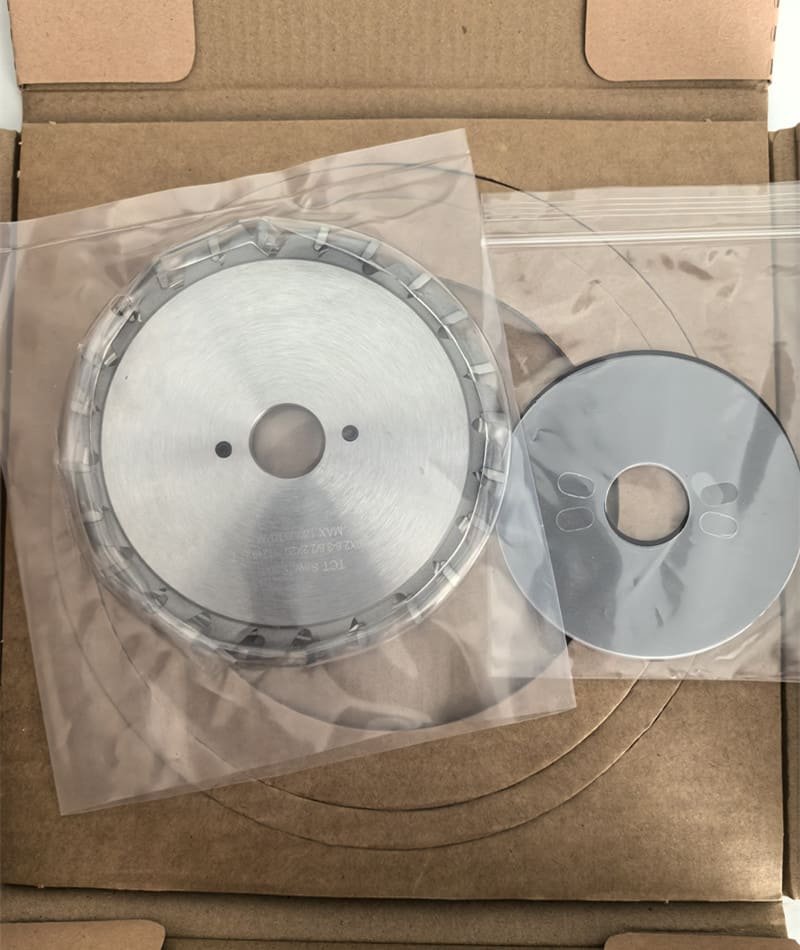

Note: Sold as a pair of two scoring blades.
